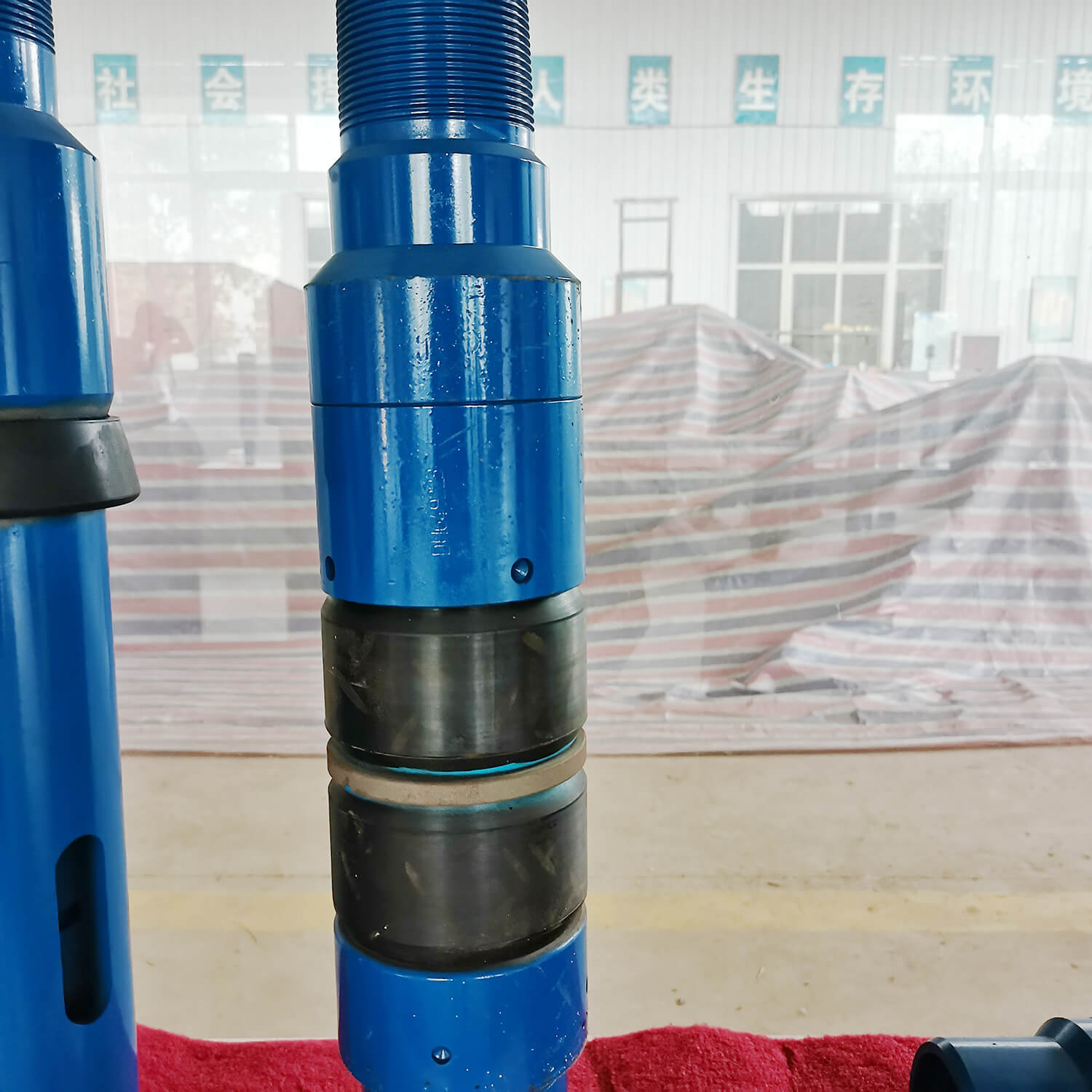

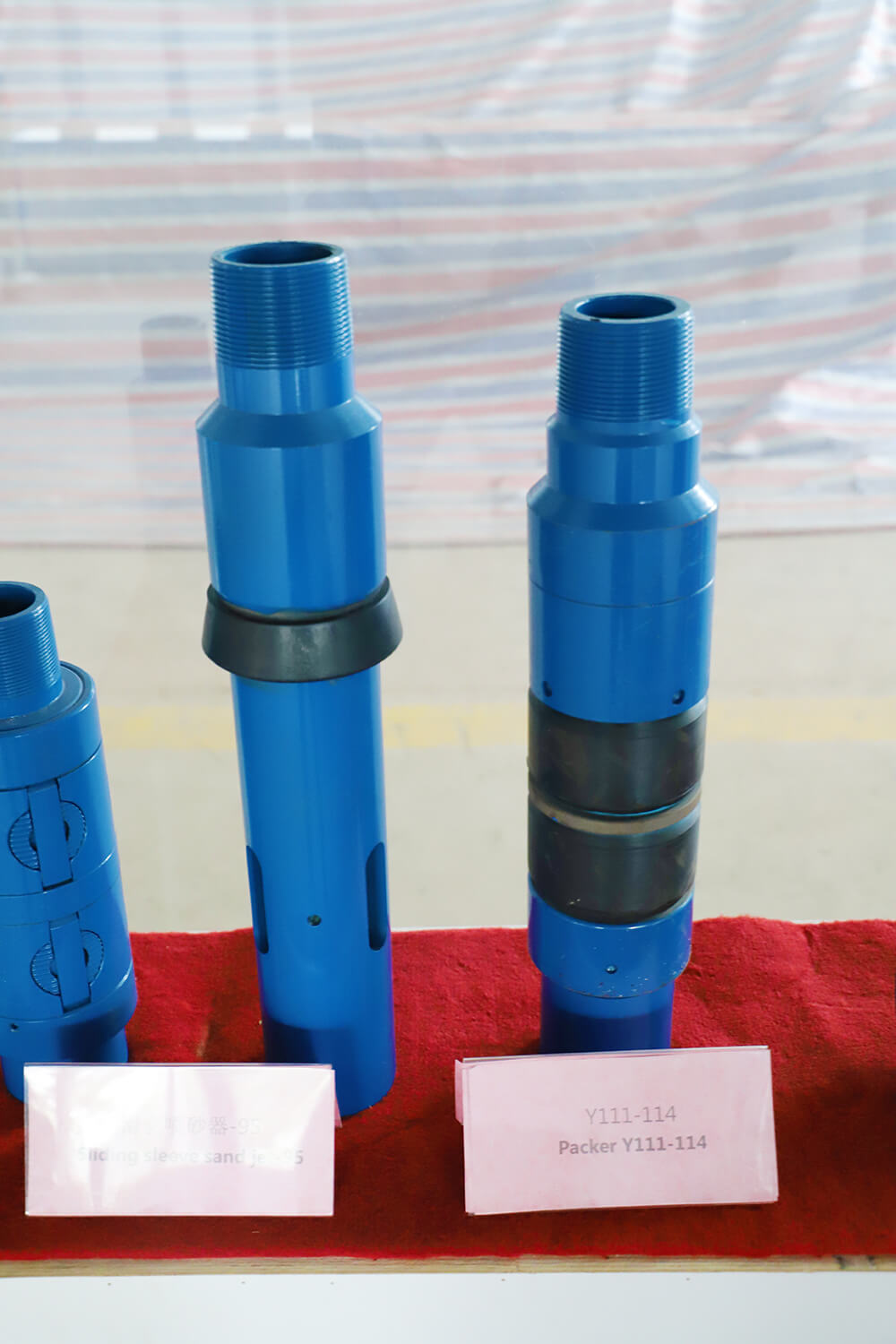

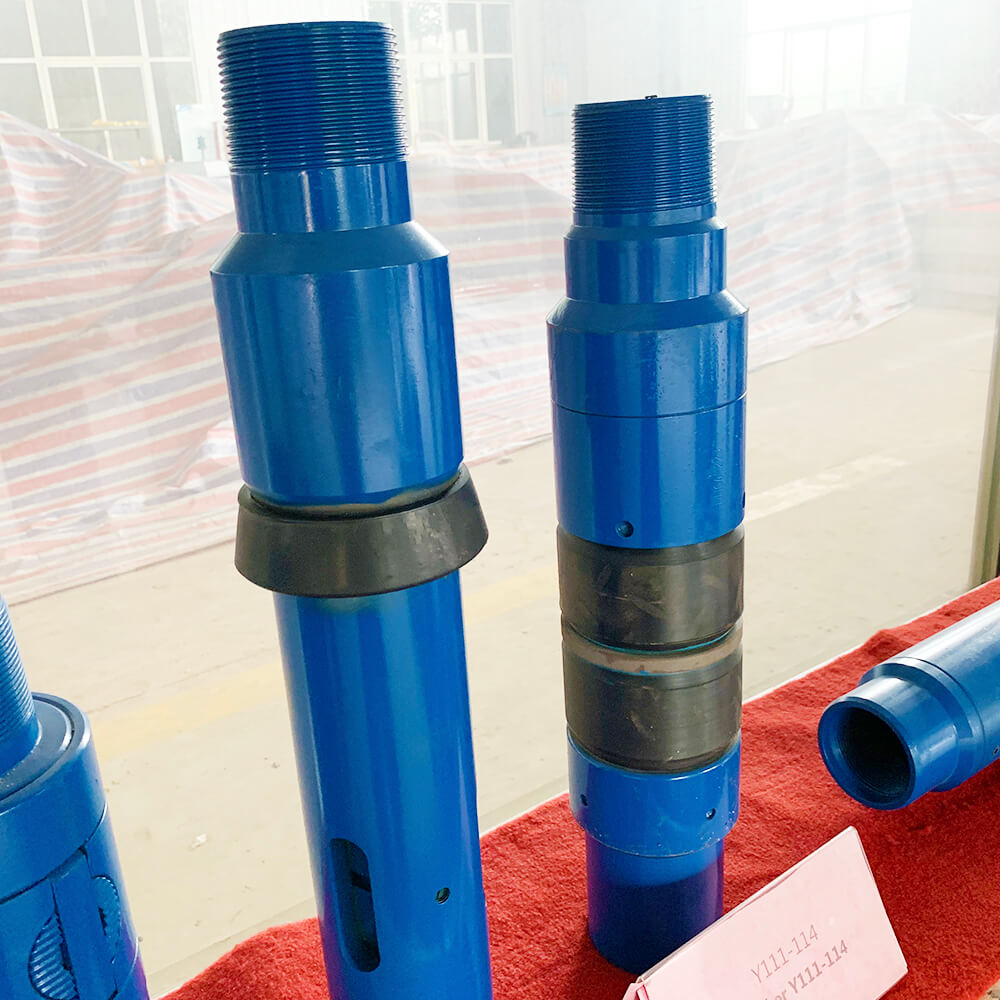

Y-111 Retrievable Mechanical Packer
Price:
$999.00
$1798.2
Contact customer service to get the price
Qty:
-
+
Use coupon code spring5 get $5 off over $120,use spring8 get $8 off over $180
Buying any products and only pay half of $45 you can get a set of Makeup brush.
share:
Application
Apply for slip Packer or Tubing Anchor(or singly) for zonal injection, extraction, squeeze, water detection and well testing.
Feature
Compact, operate simply, stable, secure, setting repeatedly. • Designed with flat key in the structure, it could be used with rotary packer.
| Casing （in） | OD （in） | ID （in） | Length （in ） | Temp （℉） | Pressure （psi） | Thread（in） |
| 5 | 4.13 | 1.89 | 26.06 | 250-300 | 5000-10000 | 2-7/8 NU |
| 5-1/2 | 4.33 | 1.89 | 27.10 | 250-300 | 5000-10000 | 2-7/8 NU |
| 5-1/2 | 4.49 | 2.17 | 21.93 | 250-300 | 5000-10000 | 2-7/8 NU |
| 5-3/4 | 4.72 | 2.28 | 21.22 | 250-300 | 5000-10000 | 2-7/8 EU |
| 6 | 5.32 | 2.44 | 21.73 | 250-300 | 5000-10000 | 2-7/8 EU |
| 6-5/8 | 5.51 | 2.44 | 22.17 | 250-300 | 5000-10000 | 2-7/8 EU |
| 6-5/8 | 5.67 | 2.99 | 22.48 | 250-300 | 5000-10000 | 3-1/2 NU |
| 7 | 5.83 | 2.99 | 22.72 | 250-300 | 5000-10000 | 3-1/2 NU |
| 7 | 5.98 | 3.46 | 23.40 | 250-300 | 5000-10000 | 4 NU |
| 7-5/8 | 6.50 | 3.46 | 23.66 | 250-300 | 5000-10000 | 4 NU |
| 8-5/8 | 7.28 | 3.62 | 24.13 | 250-300 | 5000-10000 | 4 EU |
| 9-5/8 | 8.27 | 3.62 | 24.57 | 250-300 | 5000-10000 | 4 EU |
| 9-5/8 | 8.46 | 3.94 | 25 | 250-300 | 5000-10000 | 4-1/2 EU |
