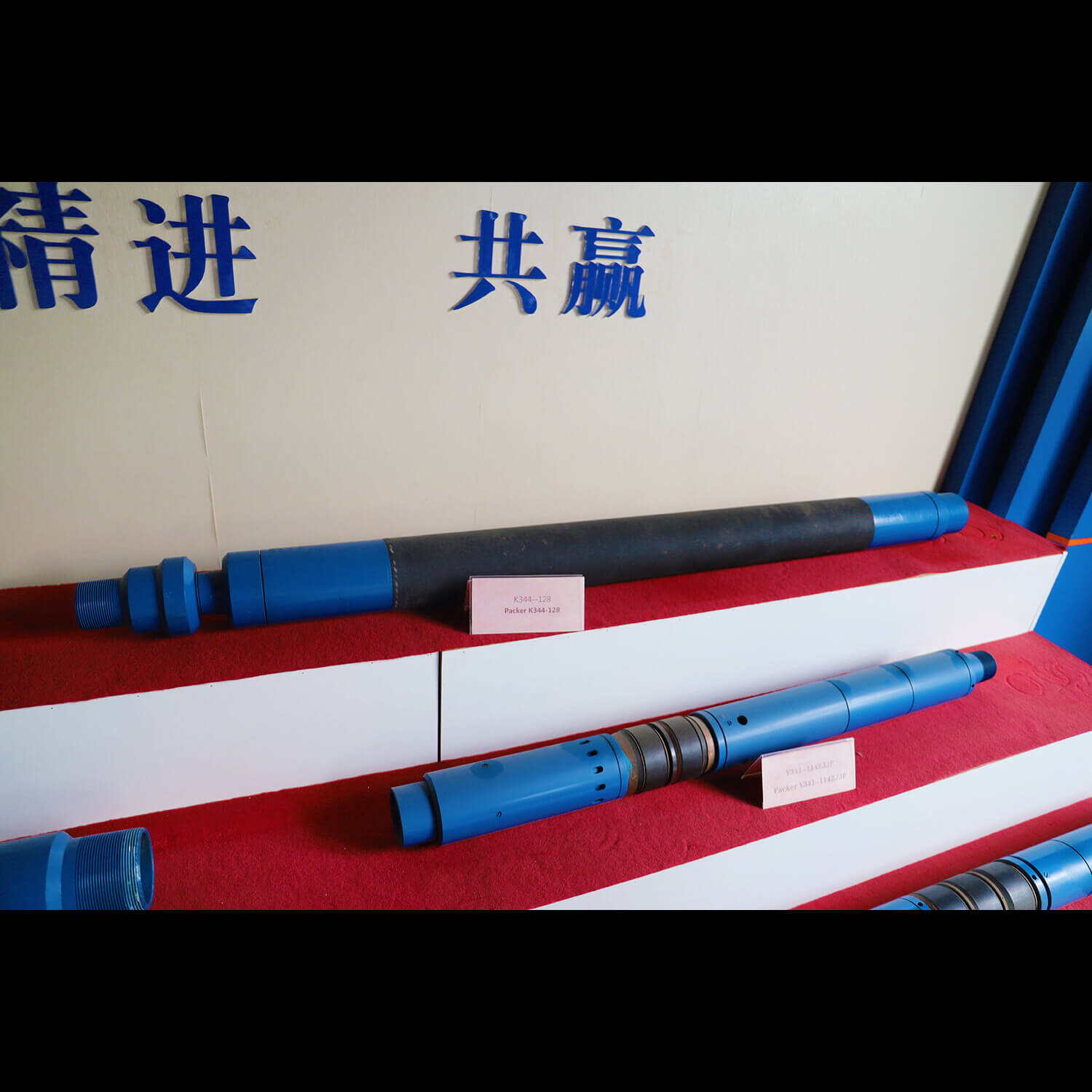

K-344 Inflatable Hydraulic Packer
Price:
$999.00
$1798.2
Contact customer service to get the price
Qty:
-
+
Use coupon code spring5 get $5 off over $120,use spring8 get $8 off over $180
Buying any products and only pay half of $45 you can get a set of Makeup brush.
share:
Application Apply for fracturing of the casing well or borehole well. It can be used for straight well, inclined well and horizontal well.
Feature
The seal adopts the imported hydrogenated nitrile rubber material, can endure high temperature and pressure difference;
The liquid inlet hole in the central tube uses slotted form, preventing sand and impurity enter the seal, ensure the normal recovery of the seal;
It is designed with a limit ring, preventing packer of over expansion, ensure the normal recovery of the seal.
| Casing （in） | OD.(in) | ID.(in） | Length(in) | Temp(℉) | Pressure(psi) | Thread(in) |
| 4-1/2 | 3.7 | 1.54 | 34.13 | 250-300 | 5000-10000 | 2-7/8 EU |
| 5 | 3.94 | 2.32 | 33.86 | 250-300 | 5000-10000 | 2-7/8 EU |
| 5-1/2 | 4.41 | 2.36 | 33.86 | 250-300 | 5000-10000 | 2-7/8 EU |
| 5-1/2 | 4.49 | 2.36 | 33.86 | 250-300 | 5000-10000 | 2-7/8 EU |
| 5-3/4 | 4.72 | 2.36 | 36.81 | 250-300 | 5000-10000 | 2-7/8 EU |
| 6 | 5.04 | 2.36 | 39.21 | 250-300 | 5000-10000 | 2-7/8 EU |
| 6 | 5.31 | 2.44 | 37.99 | 250-300 | 5000-10000 | 2-7/8 EU |
| 6-5/8 | 5.51 | 2.44 | 38.31 | 250-300 | 5000-10000 | 2-7/8 EU |
| 6-5/8 | 5.67 | 2.83 | 38.31 | 250-300 | 5000-10000 | 3-1/2 EU |
| 7 | 5.83 | 2.83 | 38.58 | 250-300 | 5000-10000 | 3-1/2 EU |
| 7 | 5.98 | 2.83 | 39.21 | 250-300 | 5000-10000 | 3-1/2 EU |
| 7-5/8 | 6.50 | 3.46 | 40.28 | 250-300 | 5000-10000 | 4 EU |
| 8-5/8 | 7.28 | 3.46 | 41.61 | 250-300 | 5000-10000 | 4 EU |
| 9-5/8 | 8.27 | 3.46 | 43.66 | 250-300 | 5000-10000 | 4 EU |
| 9-5/8 | 8.46 | 3.94 | 47.76 | 250-300 | 5000-10000 | 4-1/2 EU |
