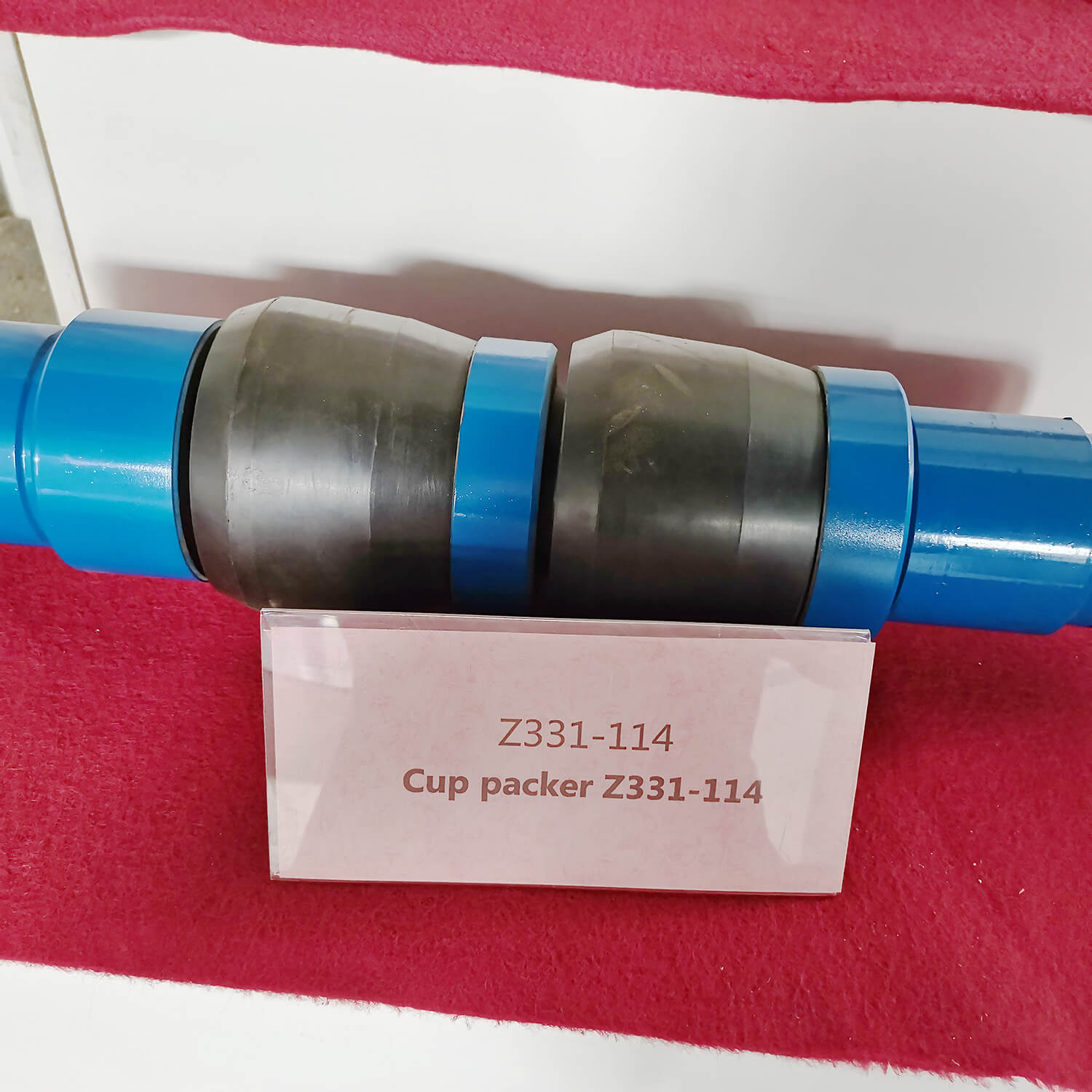

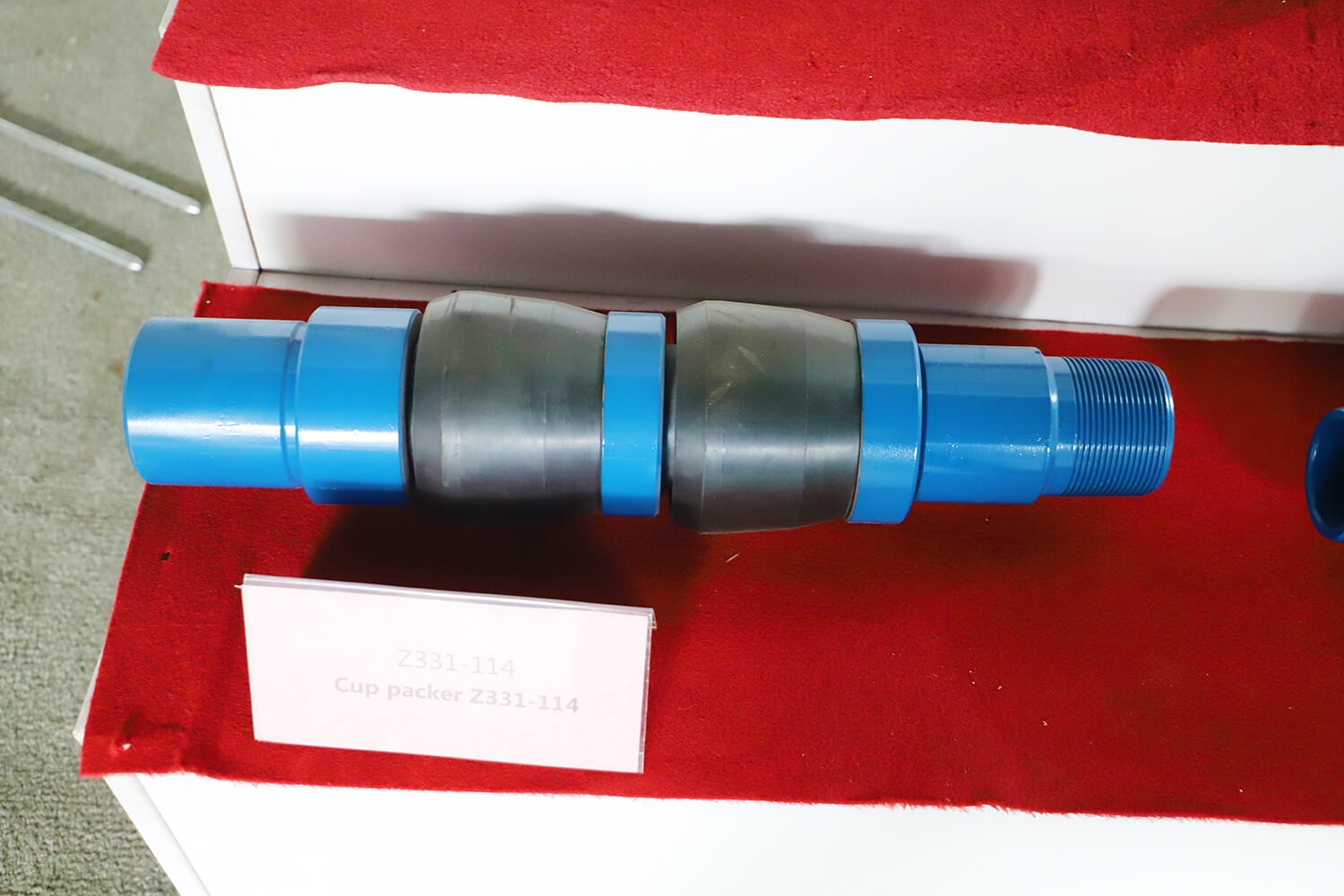

Z-331 Cup Packer
Price:
$699.00
$1258.2
Contact customer service to get the price
Qty:
-
+
Use coupon code spring5 get $5 off over $120,use spring8 get $8 off over $180
Buying any products and only pay half of $45 you can get a set of Makeup brush.
share:
Application
Used for moderate pressure differential in single tubing well, do not need to seal, just rely on differential pressure seal in well.
Feature
No anchor structure, and can be used in horizontal, shallow and deviated wells, without restricted for.
The cup can be installed on two side (maintain the pressure from two directions), also can be the same side (up or down) so that it can be assembled and disassembled easily.
The cup packer set and unset without other power equipment, moving string or pressure. It could set and seal the casing and tubing annulus just with the string. Save time and expenses.
The steel structure of the cup packer could improve the resistance of pressure.
| Casing （in） | OD.(in) | ID.(in） | Length(in) | Temp(℉) | Pressure(psi) | Thread(in) |
| 5 | 3.94 | 1.97 | 20.35 | 250-300 | 5000-10000 | 2-7/8 NU |
| 5-1/2 | 4.33 | 1.97 | 20.35 | 250-300 | 5000-10000 | 2-7/8 NU |
| 5-1/2 | 4.49 | 2.44 | 21.57 | 250-300 | 5000-10000 | 2-7/8 EU |
| 5-3/4 | 4.72 | 2.44 | 21.89 | 250-300 | 5000-10000 | 2-7/8 EU |
| 6 | 5.31 | 2.44 | 22.52 | 250-300 | 5000-10000 | 2-7/8 EU |
| 6-5/8 | 5.51 | 2.44 | 25.20 | 250-300 | 5000-10000 | 2-7/8 EU |
| 6-5/8 | 5.67 | 2.99 | 24.88 | 250-300 | 5000-10000 | 3-1/2 EU |
| 7 | 5.83 | 2.99 | 25.31 | 250-300 | 5000-10000 | 3-1/2 EU |
| 7 | 5.98 | 2.99 | 25.87 | 250-300 | 5000-10000 | 3-1/2 EU |
| 7-5/8 | 6.50 | 2.99 | 26.42 | 250-300 | 5000-10000 | 3-1/2 EU |
| 8-5/8 | 7.28 | 3.15 | 27.36 | 250-300 | 5000-10000 | 4 EU |
| 9-5/8 | 8.27 | 3.62 | 28.66 | 250-300 | 5000-10000 | 4 EU |
| 9-5/8 | 8.46 | 3.94 | 29.09 | 250-300 | 5000-10000 | 4-1/2 EU |
