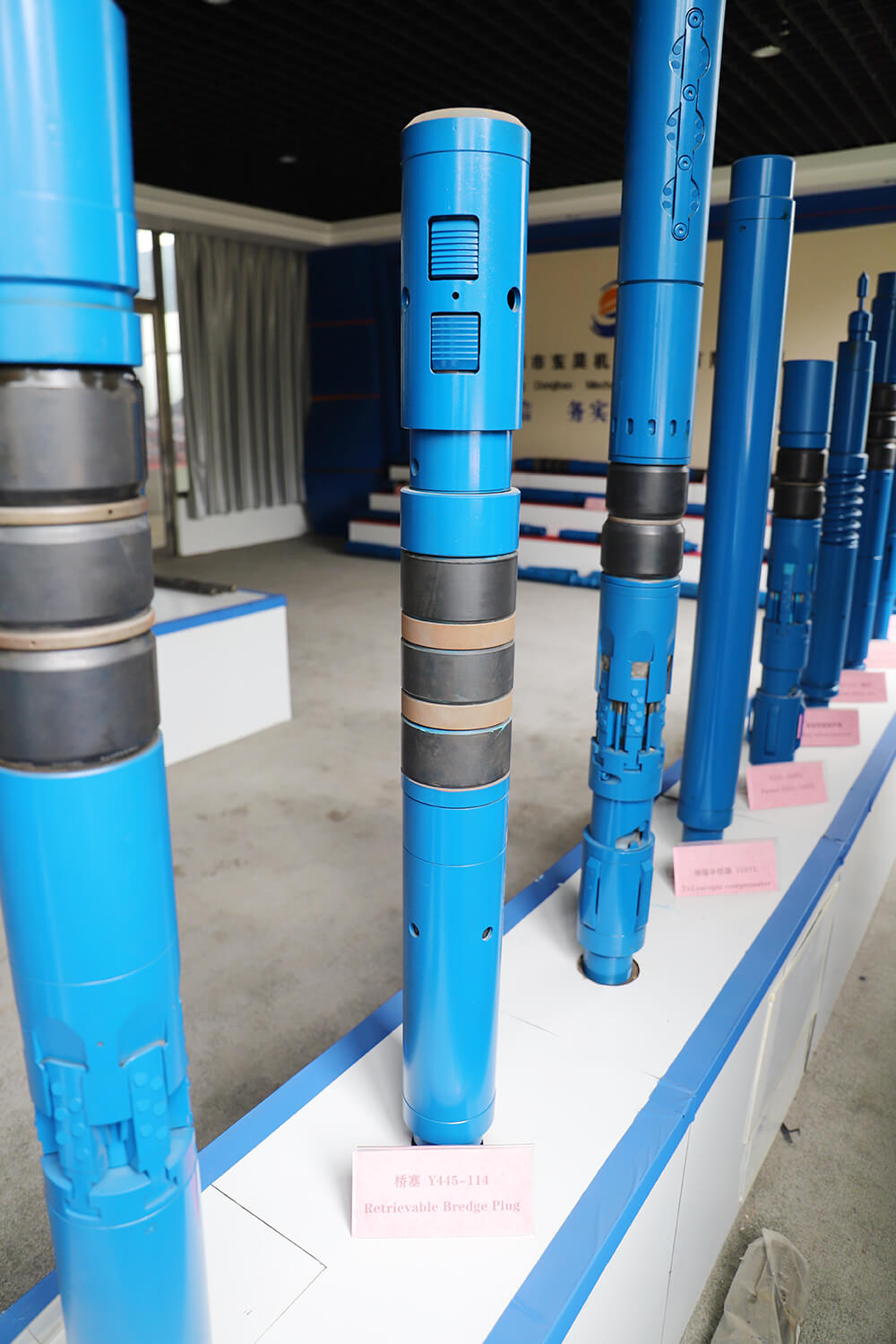

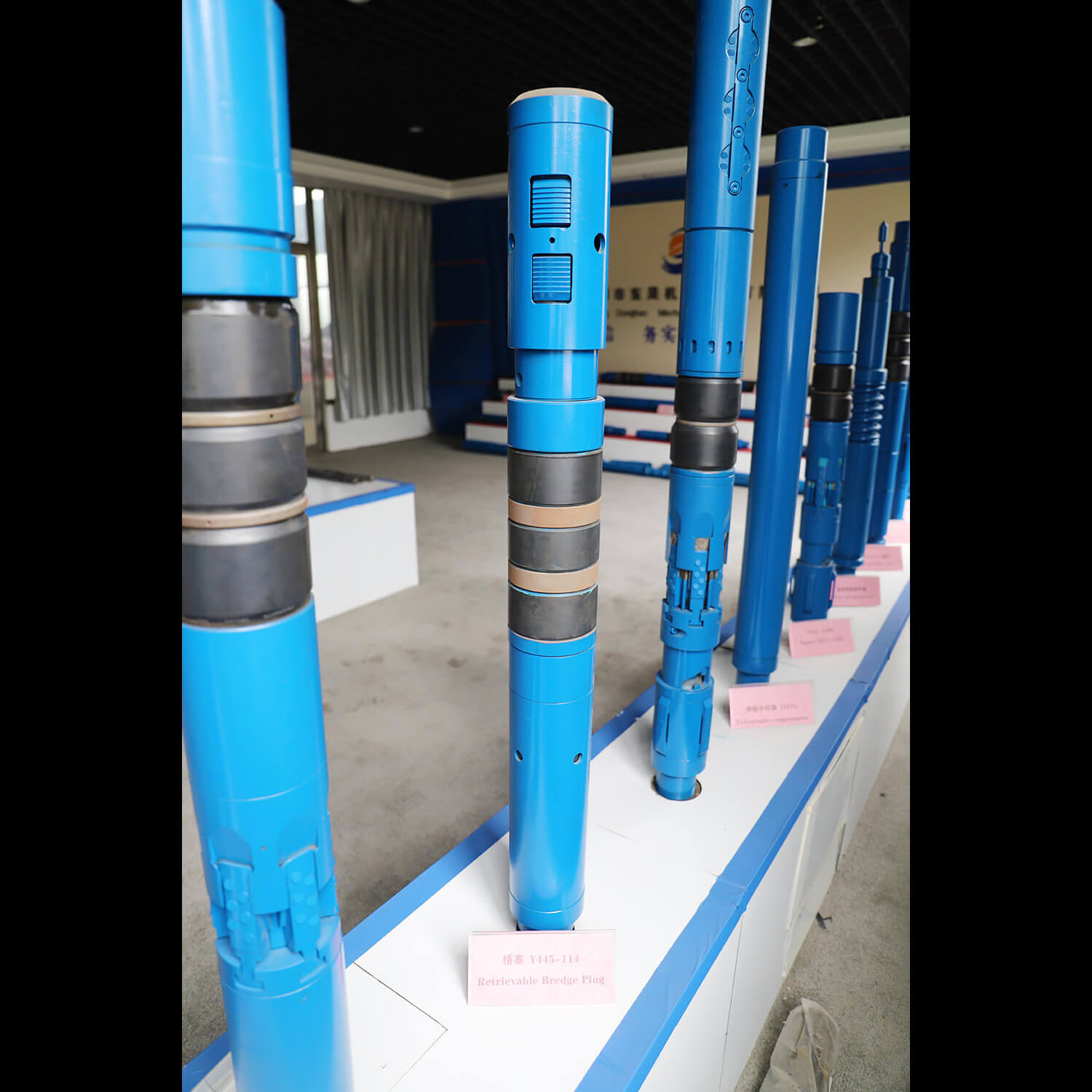

Y-445 Retrievable Bridge Plug
Price:
$999.00
$1798.2
Contact customer service to get the price
Qty:
-
+
Use coupon code spring5 get $5 off over $120,use spring8 get $8 off over $180
Buying any products and only pay half of $45 you can get a set of Makeup brush.
share:
Application
Apply for casing well to bottom layer plugging and selected layer fracturing.
Feature
Adopts bi-directional slip, stable and reliably.
Adopts annular inner locking mechanisms, set convenient, reliable.
Adopts five block teeth automatically adjust centralization and anchor.
Small setting tool, high pressure, bearing high pressure, unsetting load stable.
Can wash well and inverse well flushing before it set.
| Casing （in） | OD.(in) | Length(in) | Temp(℉) | Pressure(psi) | Thread(in) |
| 4-1/2 | 3.7 | 40.71 | 250-300 | 5000-10000 | 2-3/8 NU |
| 5 | 4.1 | 43.58 | 250-300 | 5000-10000 | 2-7/8 NU |
| 5-1/2 | 4.49 | 46.85 | 250-300 | 5000-10000 | 2-7/8 NU |
| 5-3/4 | 4.72 | 47.76 | 250-300 | 5000-10000 | 2-7/8 NU |
| 6 | 5.32 | 47.56 | 250-300 | 5000-10000 | 2-7/8 NU |
| 6-5/8 | 5.51 | 47.99 | 250-300 | 5000-10000 | 2-7/8 NU |
| 6-5/8 | 5.67 | 47.17 | 250-300 | 5000-10000 | 2-7/8 NU |
| 7 | 5.83 | 46.85 | 250-300 | 5000-10000 | 2-7/8 EU |
| 7 | 5.98 | 48.15 | 250-300 | 5000-10000 | 2-7/8 EU |
| 7-5/8 | 6.50 | 49.80 | 250-300 | 5000-10000 | 3-1/2 EU |
| 8-5/8 | 7.28 | 51.06 | 250-300 | 5000-10000 | 3-1/2 EU |
| 9-5/8 | 8.27 | 53.15 | 250-300 | 5000-10000 | 4 EU |
| 9-5/8 | 8.46 | 54.53 | 250-300 | 5000-10000 | 4-1/2 EU |
