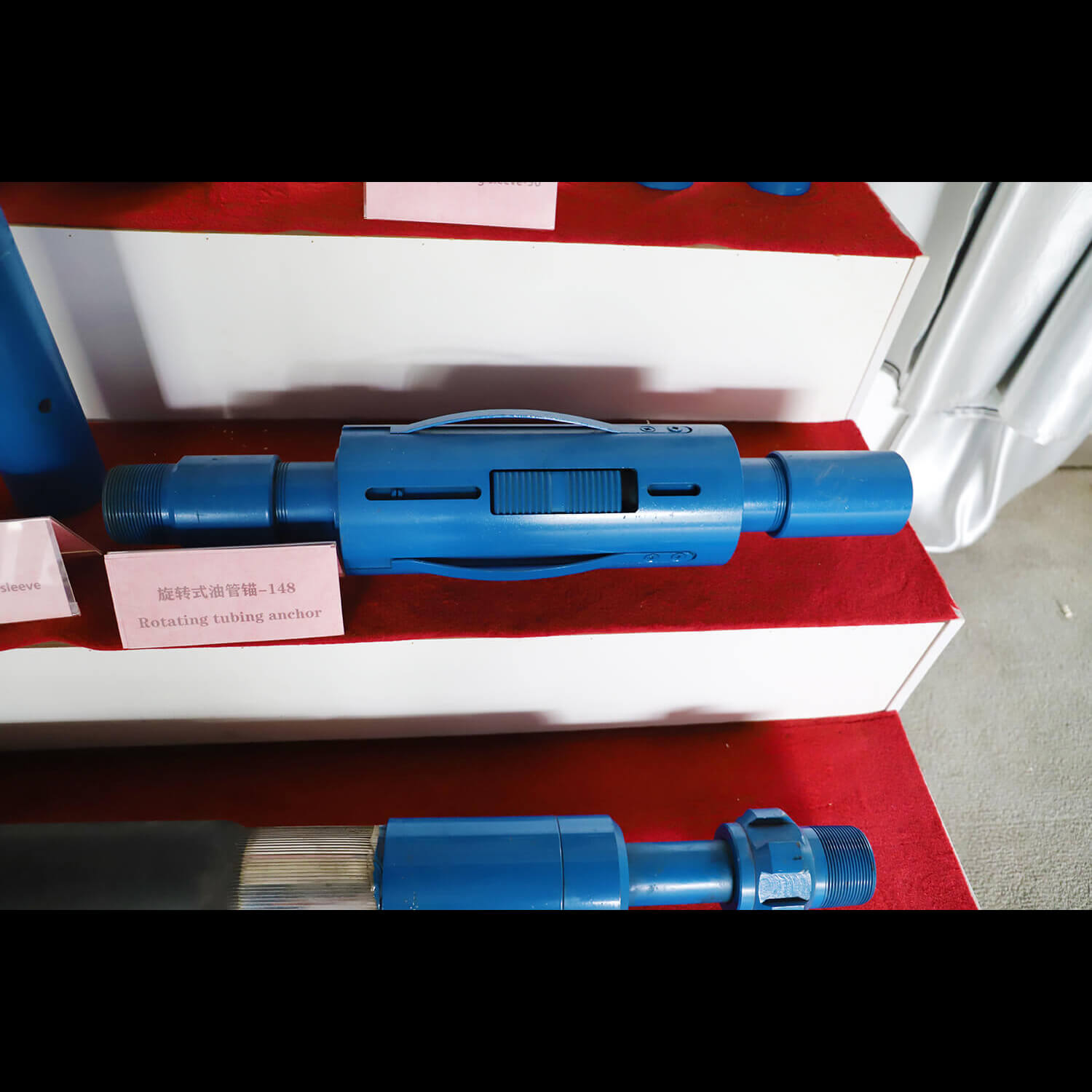

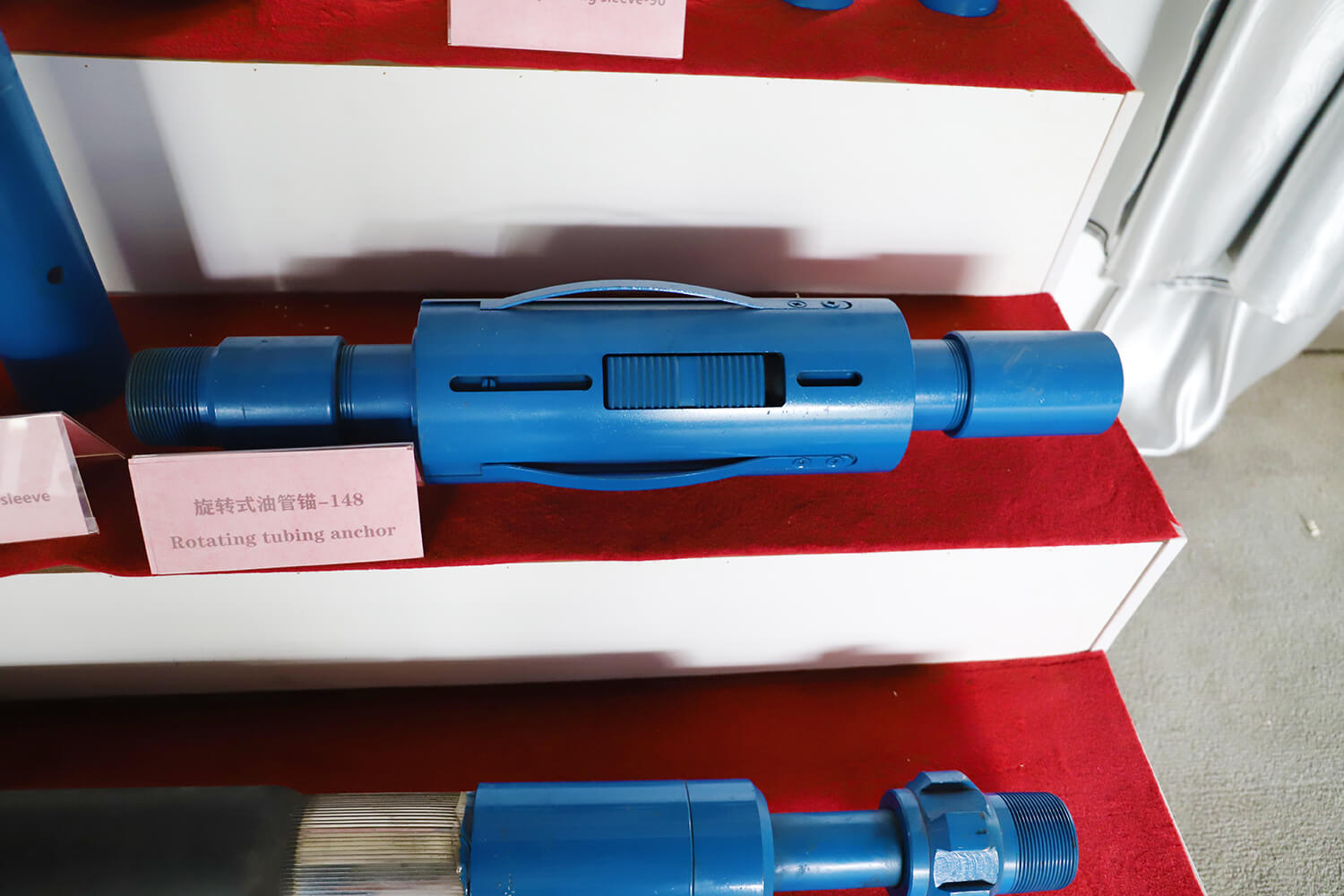

Rotating Tubing Anchor
Price:
$999.00
$1798.2
Contact customer service to get the price
Qty:
-
+
Use coupon code spring5 get $5 off over $120,use spring8 get $8 off over $180
Buying any products and only pay half of $45 you can get a set of Makeup brush.
share:
Application
Apply for oil extraction,water-injection, avoid string movement which could release the packer or reduce sucker rod pump stroke.
Feature
Right rotate to set, pull to release the anchor.
Bi-directional slip, stable and reliable.
Large ID , ensure the tool pass smoothly.
Avoid the tubing fatigue fracture.
Compact, easy maintain.
| Casing （in） | OD.(in) | ID.(in） | Length(in) | Temp(℉) | Pressure(psi) | Thread(in) |
| 5-1/2 | 4.49 | 2.44 | 30.87 | 250 | 7000 | 2-7/8 EU |
| 5-3/4 | 4.72 | 2.44 | 31.3 | 250 | 7000 | 2-7/8 EU |
| 6 | 5.32 | 2.44 | 31.22 | 250 | 7000 | 2-7/8 EU |
| 6-5/8 | 5.51 | 2.44 | 30.75 | 250 | 7000 | 2-7/8 EU |
| 6-5/8 | 5.67 | 2.44 | 30.75 | 250 | 7000 | 2-7/8 EU |
| 7 | 5.83 | 2.44 | 30.75 | 250 | 7000 | 2-7/8 EU |
| 7 | 5.98 | 2.99 | 32.4 | 250 | 7000 | 3-1/2 EU |
| 7-5/8 | 6.50 | 2.99 | 32.87 | 250 | 7000 | 3-1/2 EU |
| 8-5/8 | 7.28 | 3.47 | 34.21 | 250 | 7000 | 4 EU |
| 9-5/8 | 8.27 | 3.47 | 36.76 | 250 | 7000 | 4 EU |
| 9-5/8 | 8.47 | 3.94 | 35.35 | 250 | 7000 | 4-1/2 EU |
