Guided inclined well pump
Product introduction

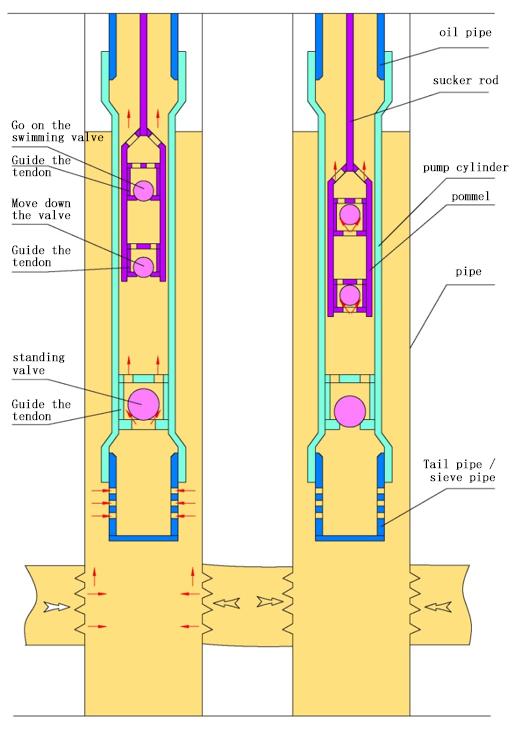

Guided inclined well pump is a kind of pump developed for the inclined well with small inclination (inclination less than 30 degrees). The guide structure is designed in the valve hood of the pump, and the valve ball can accurately and quickly return seal under the centering of the guide structure to reduce leakage.
Main features of product
1, the valve cover adopts the guided structure, which can reduce the drift of the valve ball, make the valve ball quick return sealing, improve the efficiency of oil recovery
2, the upper and lower oil valve adopts closed valve cover structure, and has guide bars, to ensure the synchronous opening and closing of the upper and lower oil valve, while improving the stress of the upper and lower oil joint, to avoid the upper and lower oil joint worn by the valve ball and resulting in fracture aging.
Main technical parameters | |||||
Pump diameter specification(mm) | Pump barrel length(m) | Plunger length（m） | Connect rod specifications | Connection tubing specification | Maximum outside diameter(mm) |
31.75 | 2.4-11m | 0.6-1.5m | CYG19 | 2 7/8 | 88.9 |
38.1 | CYG19 | 2 7/8 | 88.9 | ||
44.45 | CYG19 | 2 7/8 | 88.9 | ||
57.15 | CYG19 | 2 7/8 | 88.9 | ||
69.85 | CYG22 | 3 1/2 | 108 | ||
