API 5CT PUP Joint

Type:
2 3/8 EUE
Grade:
L80-1
Standard:
API 5CT
Application scope:
PUP JOINT
Classify:
PUP JOINT
Price:
$22.88 $41.1 Contact customer service to get the price
Qty:
- +
Use coupon code spring5 get $5 off over $120,use spring8 get $8 off over $180 Buying any products and only pay half of $45 you can get a set of Makeup brush.
share:
Product Describe
Product parameters
Production process
Packaging production

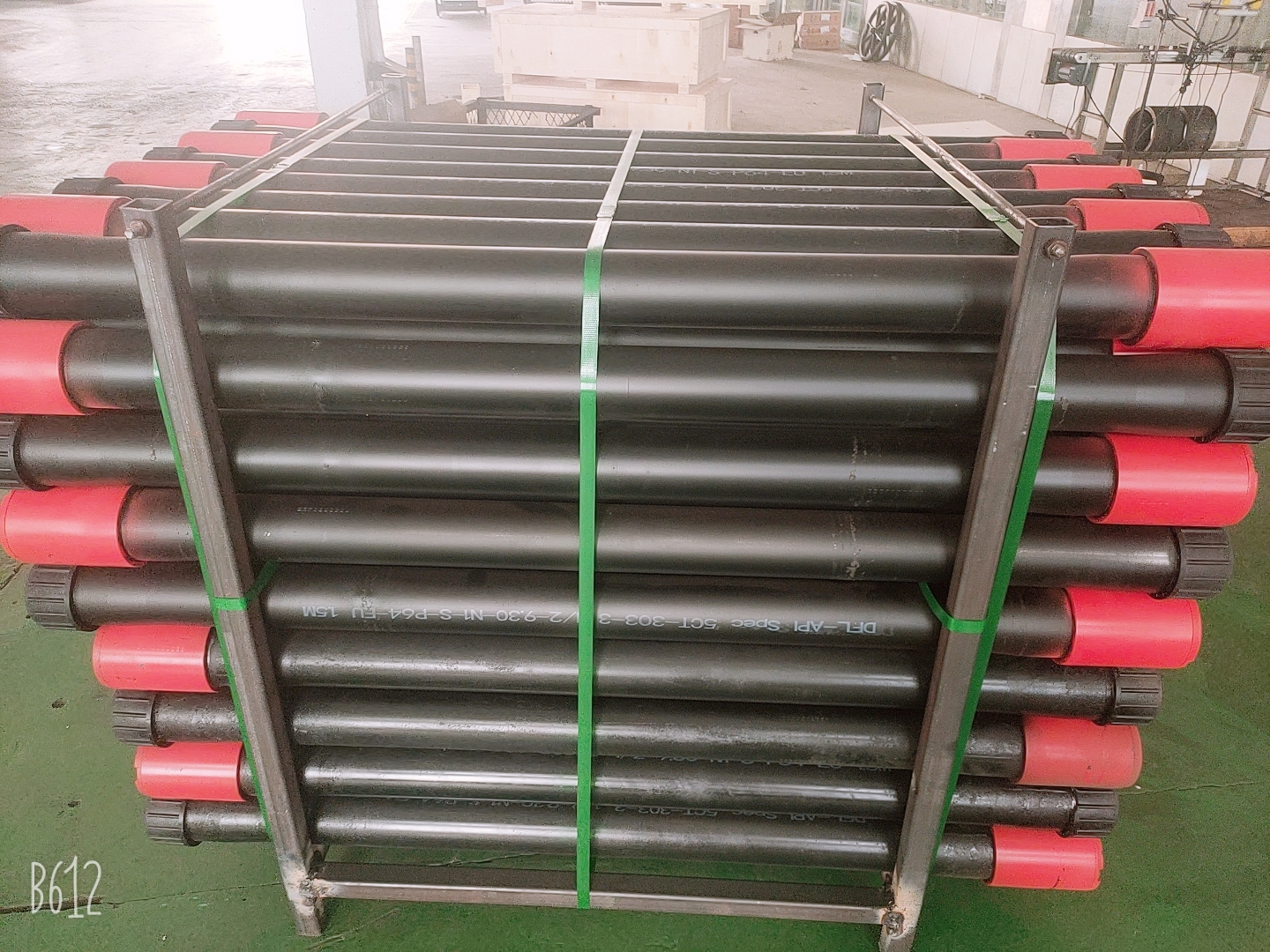

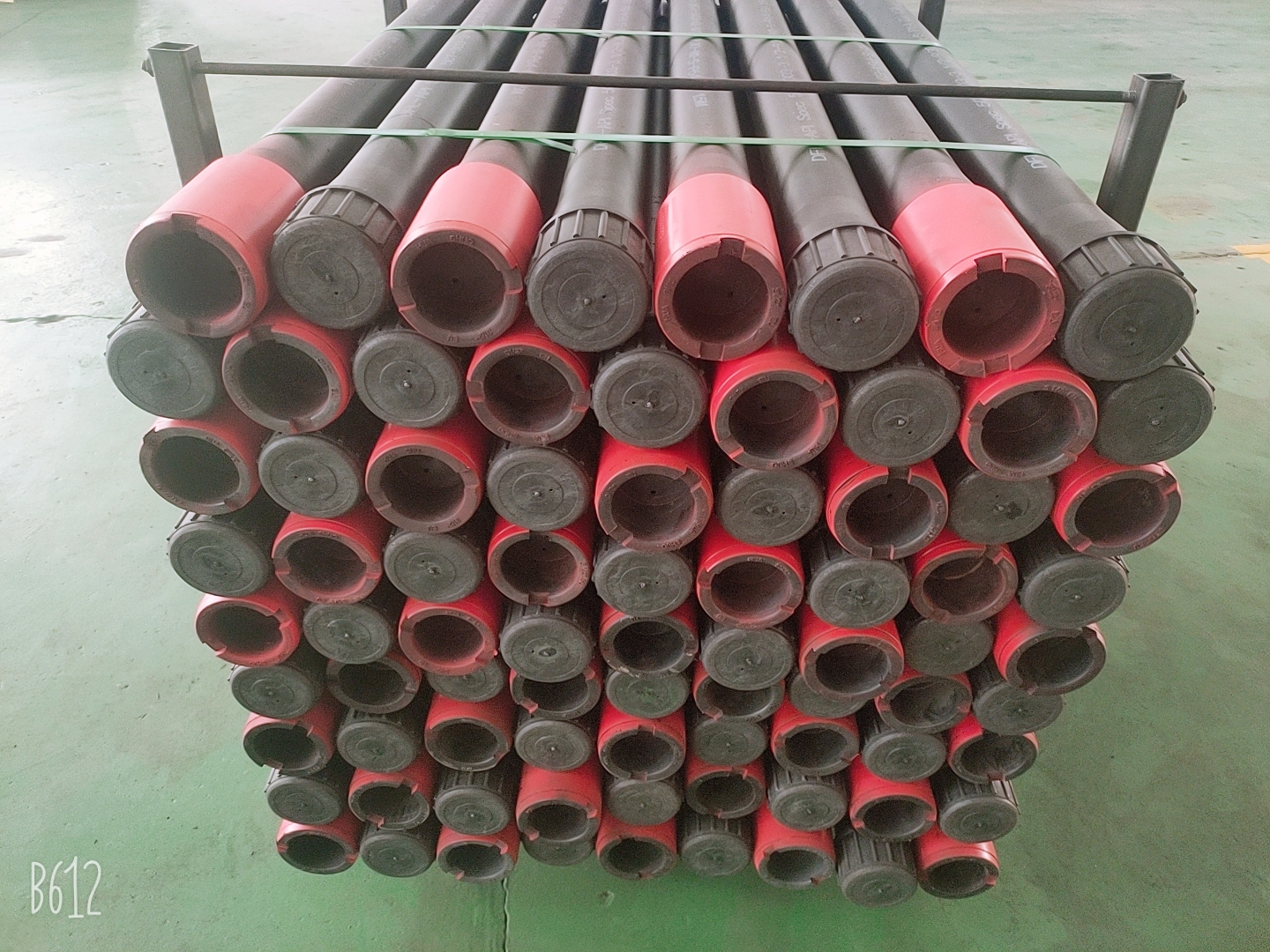

API Tubing and Casing Pup Joint

Tubing and Casing Pup Joints are machined according to the latest version of API Spec 5CT. Its used to connect two pipes of same diameter with the same types of thread on the two ends.

The Steel Grade includes J55,K55,N80-1, N80Q, L80-1, P110 etc.

There are two types of thread widely used in Tubing pup joint:Non-upset Thread(NUE) and External-upset Thread(EUE)

There are three types of thread widely used in Casing pup joint: Long-Round Thread(LTC), Short-Round Thread(STC),Buttress Thread(BTC)

There are two types of End thread: Pin*Pin, Pin*Box(Pin*Pin with coupling)



OD

Standard

Length

Connection

Steel Grade

1.9”-4 1/2

API 5CT

Customized

NUE/EUE

J55/K55/N80/L80/P110

4 1/2-20

API 5CT

Customized

LTC/STC/BTC

J55/K55/N80/L80/P110
